Angr从0到0的成长之路（二）

本文最后更新于525 天前，其中的信息可能已经过时！

前言

继续做题，冲冲冲，本文每一个章节都是先按照自己的思路做完然后看出题人的答案

每次进虚拟环境敲代码太麻烦了，在这存一下

cd angrfile
virtualenv env
source venv/bin/activate

0x0.03_angr_symbolic_registers

Emm…..不还是那一套嘛…..

import angr
import sys

def main(argv):
    Path = argv[1]
    p = angr.Project(Path,auto_load_libs = False)
    init_state = p.factory.entry_state()
    sm = p.factory.simgr(init_state)

    target_address = 0x080495FA

    sm.explore(find = target_address)

    if sm.found:
        solution_state = sm.found[0]
        print(solution_state.posix.dumps(0))

if __name__ == '__main__':
    main(sys.argv)

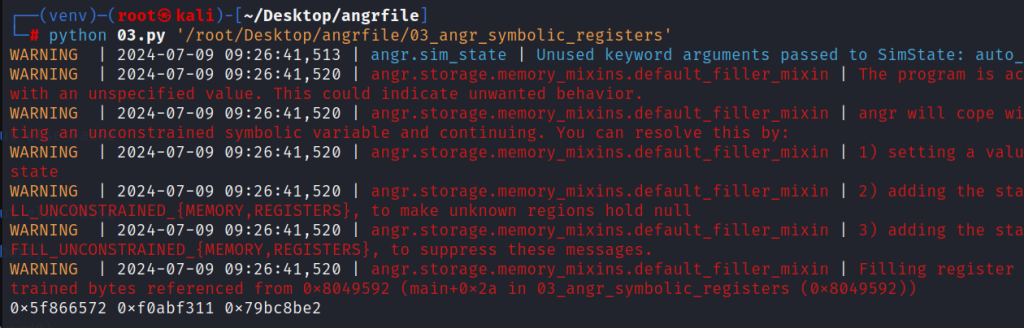

也是出了答案，看一眼题解

OK啊，也是有很多新东西，开始学习出题人的思路：在通常情况下，想要从main函数入口点找到一条正确的路径是很耗时的，但是我们可以指定一个start_address，然后自己分析之前的部分，将此时的要求的值在哪个寄存器里搞明白，可以自己加限制来提高效率，用angr输出这时候的寄存器的值，再一步步向上逆

import angr
import claripy
import sys

def main(argv):
    Path = argv[1]
    p = angr.Project(Path,auto_load_libs = False)
    start_address = 0x08049592
    init_state = p.factory.blank_state(addr = start_address , auto_load_libs =False)

    #创建三个变量，包括名字和大小，怎么一股z3的味道...
    password0_size_in_bits = 32
    password0 = claripy.BVS('password0',password0_size_in_bits)
    password1_size_in_bits = 32
    password1 = claripy.BVS('password1',password1_size_in_bits)
    password2_size_in_bits = 32
    password2 = claripy.BVS('password2',password2_size_in_bits)

    #将三个数字交给state状态下的这三个寄存器
    init_state.regs.eax = password0
    init_state.regs.ebx = password1
    init_state.regs.edx = password2

    sm = p.factory.simgr(init_state)

    def is_sucessful(state):
        stdout_output = state.posix.dumps(1)
        return True if  b'Good Job.' in stdout_output else False

    def should_abort(state):
        stdout_output = state.posix.dumps(1)
        return True if b'Try again.' in stdout_output else False

    sm.explore(find = is_sucessful,avoid = should_abort)

    if sm.found:
        solution_state = sm.found[0]
        solution0 = solution_state.solver.eval(password0)
        solution1 = solution_state.solver.eval(password1)
        solution2 = solution_state.solver.eval(password2)
        #这里不是dumps(0)，我们要的值不是state的时候的输入，是寄存器的值
        print(hex(solution0),hex(solution1),hex(solution2))

if __name__ == '__main__':
    main(sys.argv)

写本文时本人并不熟练python的格式化字符串和代码简写，代码有点史，能跑就行

0x1.04_angr_symbolic_stack

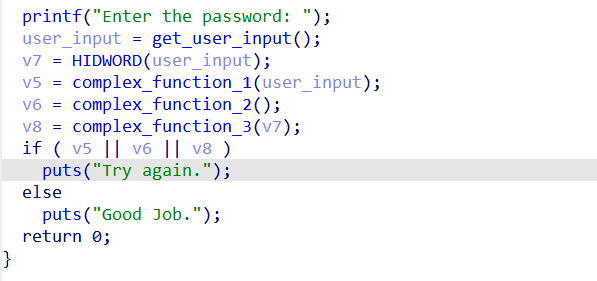

根据名字来看的话应该是跟栈有关，进去一看果然是把读的数放在了栈上，这个程序很简单，为了练习就不以做出来为目的了，直接往出题人的思路上去靠一下

然后我大概写了一个exp，但是因为不知道能不能直接对esp操作，再加上一些函数并不了解，直接学习一手

import angr,claripy
import sys

def main(argv):
    path = argv[1]
    p = angr.Project(path,auto_load_libs = False)
    start_address = 0x80493EF
    init_state = p.factory.blank_state(addr = start_address)
    password0 = claripy.BVS('password0',32)
    password1 = claripy.BVS('password1',32)

    init_state.regs.esp = ...  #初始化esp

    sm = p.factory.simgr(init_state)

    def is_sucessful(state):
        stdout_output = state.posix.dumps(1)
        return True if  b'Good Job.' in stdout_output else False

    def should_abort(state):
        stdout_output = state.posix.dumps(1)
        return True if b'Try again.' in stdout_output else False

    sm.explore(find = is_sucessful,avoid = should_abort)

    if sm.found:
        solution_state = sm.found[0]
        ...
        #得到当前的state的esp然后减一下
        print(solution)


if __name__ == '__main__':
    main(sys.argv)

这个题好像要比我想象的要复杂得多啊，为了还原栈在scanf前后的状态要分析一下栈的变化

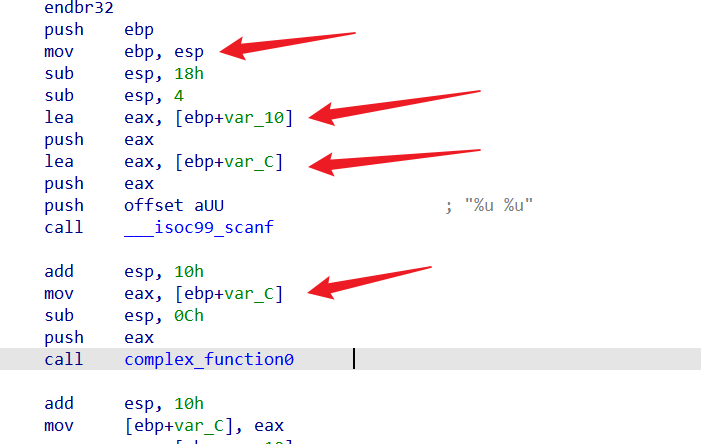

先是将esp交给了ebp，为接下来的函数开辟了一部分的栈空间，然后esp下降，然后将ebp-0x10,ebp-0xc压入栈中，与格式化字符串一起传给scanf，然后可以看到在第一个加密函数对第一个输入进行了操作，所以password0就是第一个输入，现在对上面的代码进行一下改进

import angr,claripy
import sys

def main(argv):
    path = argv[1]
    p = angr.Project(path,auto_load_libs = False)
    start_address = 0x080493F2
    init_state = p.factory.blank_state(addr = start_address)
    password0 = claripy.BVS('password0',32)
    password1 = claripy.BVS('password1',32)

    init_state.regs.ebp = init_state.regs.esp
    init_state.regs.esp -= 0x8
    init_state.stack_push(password0)
    init_state.stack_push(password1)

    sm = p.factory.simgr(init_state)

    def is_sucessful(state):
        stdout_output = state.posix.dumps(1)
        return True if  b'Good Job.' in stdout_output else False

    def should_abort(state):
        stdout_output = state.posix.dumps(1)
        return True if b'Try again.' in stdout_output else False

    sm.explore(find = is_sucessful,avoid = should_abort)

    if sm.found:
        solution_state = sm.found[0]
        solution0 = solution_state.solver.eval(password0)
        solution1 = solution_state.solver.eval(password1)
        print(solution0,solution1)
    else:
        print('Not Found')

if __name__ == '__main__':
    main(sys.argv)

要特别注意取的起始地址start_address，地址不同，栈的情况也不一样，要注意还原，stack_push函数可以完全模拟入栈操作的寄存器和操作数的变化

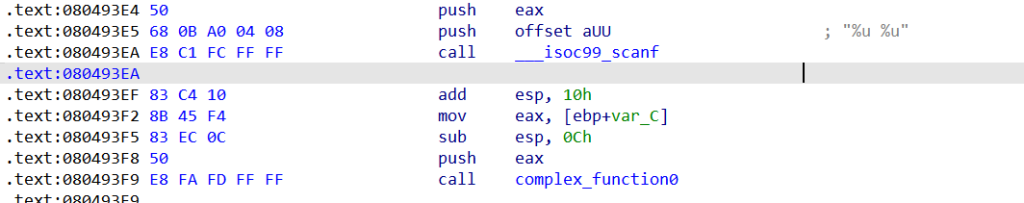

我调试了一下，在add esp,0x10结束后esp 并不在我们设计的ebp-0x10的位置，但是之后的操作栈只会向下开辟，不污染我们的password所以能出答案

0x2.05_angr_symbolic_memory

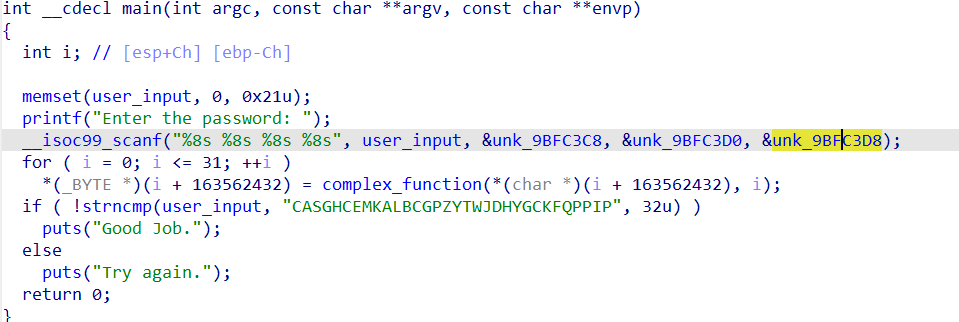

很显然，这题我们的思路就是要去初始化四个变量，然后将他们交给scanf之后的state的那四个特定地址user_input, &unk_9BFC3C8, &unk_9BFC3D0, &unk_9BFC3D8，怎么交给这四个地址肯定是有个函数的，但是之前的代码中并未提到

看了一下函数的格式是这样的

initial_state.memory.store(password0_address, password0)

并且最后为了得到字符串而不是一串数字，还进行了如下操作

solution0 = solution_state.solver.eval(password0,cast_to=bytes).decode()

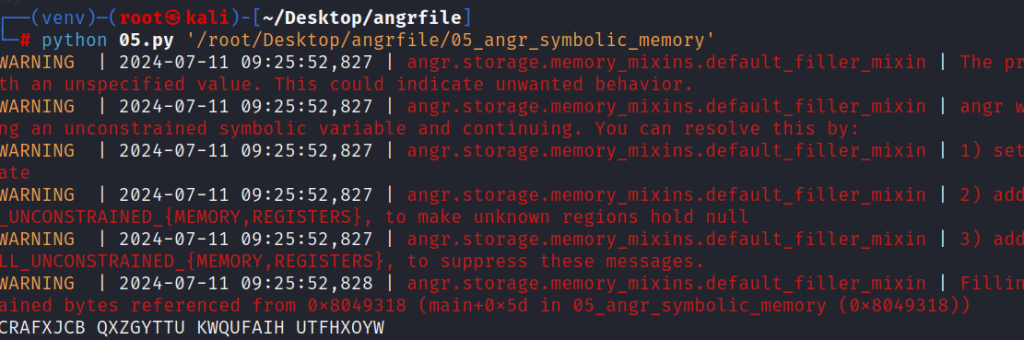

好了，现在可以写出我们的exp了

import angr
import claripy
import sys

def main(argv):
    path = argv[1]
    p = angr.Project(path,auto_load_libs = False)
    start_address = 0x08049315
    init_state = p.factory.blank_state(addr = start_address)

    password0 = claripy.BVS('password0',64)
    password1 = claripy.BVS('password1',64)
    password2 = claripy.BVS('password2',64)
    password3 = claripy.BVS('password3',64)
    init_state.memory.store(0x09BFC3C0, password0)
    init_state.memory.store(0x09BFC3C8, password1)
    init_state.memory.store(0x09BFC3D0, password2)
    init_state.memory.store(0x09BFC3D8, password3)

    sm = p.factory.simgr(init_state)

    def is_sucessful(state):
        stdout_output = state.posix.dumps(1)
        return True if  b'Good Job.' in stdout_output else False

    def should_abort(state):
        stdout_output = state.posix.dumps(1)
        return True if b'Try again.' in stdout_output else False

    sm.explore(find = is_sucessful,avoid = should_abort)

    if sm.found:
        solution_state = sm.found[0]
        solution0 = solution_state.solver.eval(password0,cast_to = bytes).decode()
        solution1 = solution_state.solver.eval(password1,cast_to = bytes).decode()
        solution2 = solution_state.solver.eval(password2,cast_to = bytes).decode()
        solution3 = solution_state.solver.eval(password3,cast_to = bytes).decode()
        print(solution0,solution1,solution2,solution3)
    else:
        print('Not Found')

if __name__ == '__main__':
    main(sys.argv)

0x3.06_angr_symbolic_dynamic_memory

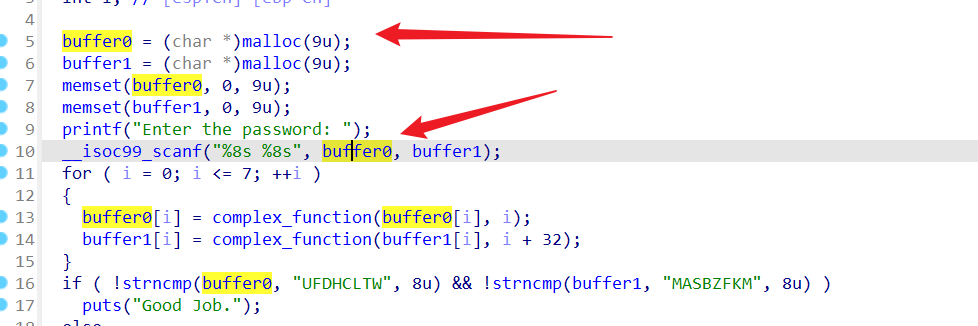

与上个题不同的是这个不是静态的地址，是从堆上开辟的一段地址，所以在还原环境的时候我们也要在堆上开辟地址，交给buffer0和buffer1

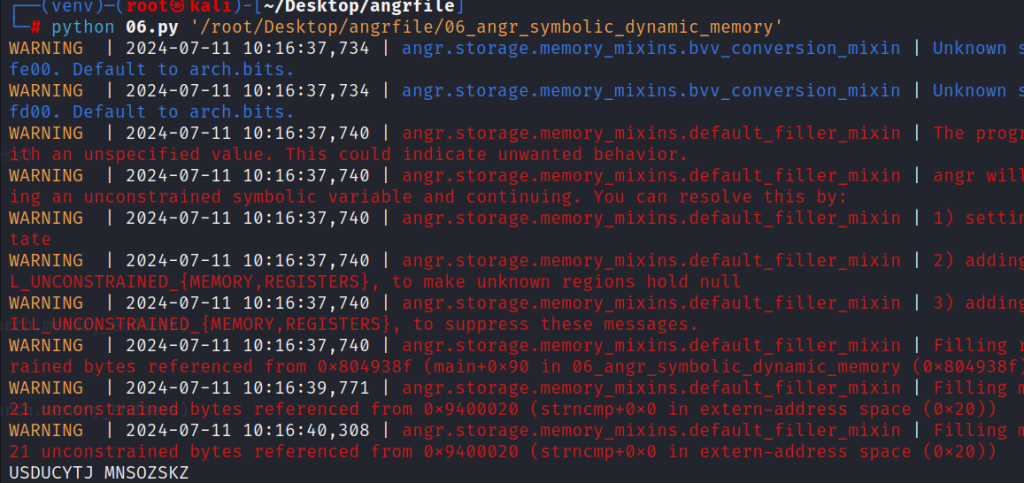

出题人的exp中提到angr是默认大段排序，所以要用 endness = p.arch.memory_endness 改为小段存储数据，直接上exp了：

import angr
import claripy
import sys

def main(argv):
    path = argv[1]
    p = angr.Project(path,auto_load_libs = False)
    start_address = 0x0804938C
    init_state = p.factory.blank_state(addr = start_address)

    #print('ESP:',init_state.regs.esp)
    esp = 0x7fff0000
    password0 = claripy.BVS('password0',64)
    password1 = claripy.BVS('password1',64)
    heap_0 = esp - 0x200
    buffer0 = 0x093D3B38
    init_state.memory.store(buffer0, heap_0,endness = p.arch.memory_endness)
    init_state.memory.store(heap_0,password0)
    heap_1 = esp - 0x300
    buffer1 = 0x093D3B40
    init_state.memory.store(buffer1, heap_1,endness = p.arch.memory_endness)
    init_state.memory.store(heap_1,password1)

    sm = p.factory.simgr(init_state)

    def is_sucessful(state):
        stdout_output = state.posix.dumps(1)
        return True if  b'Good Job.' in stdout_output else False

    def should_abort(state):
        stdout_output = state.posix.dumps(1)
        return True if b'Try again.' in stdout_output else False

    sm.explore(find = is_sucessful,avoid = should_abort)

    if sm.found:
        solution_state = sm.found[0]
        solution0 = solution_state.solver.eval(password0,cast_to = bytes).decode()
        solution1 = solution_state.solver.eval(password1,cast_to = bytes).decode()

        print(solution0,solution1)
    else:
        print('Not Found')

if __name__ == '__main__':
    main(sys.argv)

今天的题就先做到这吧 : )
