前言

本文可视为angr_CTF 07-09的题目wp，且每题均为独立思考并结合出题人的解题脚本进行改进

0x0.07_angr_symbolic_file

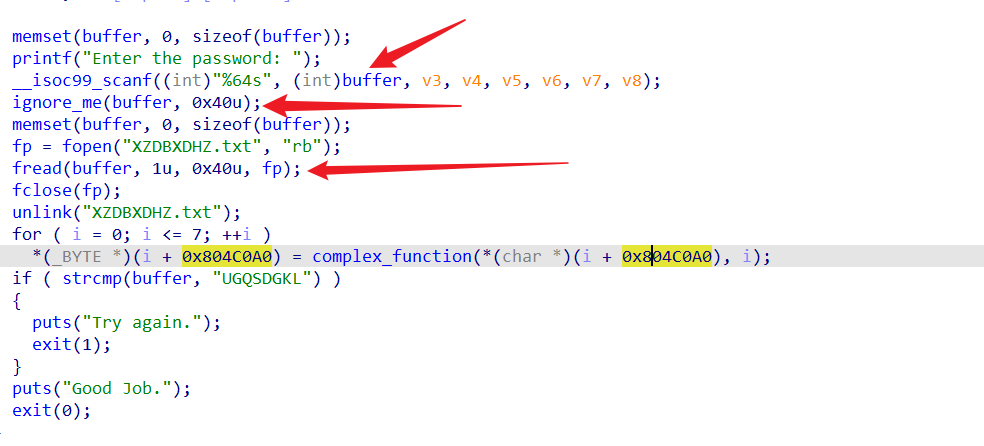

首先进行了一个读取，将输入读进buffer中，进行了一个ignore_me函数，出来后将buffer 置空并从文件中读取长度为64的字节，最后进行检验

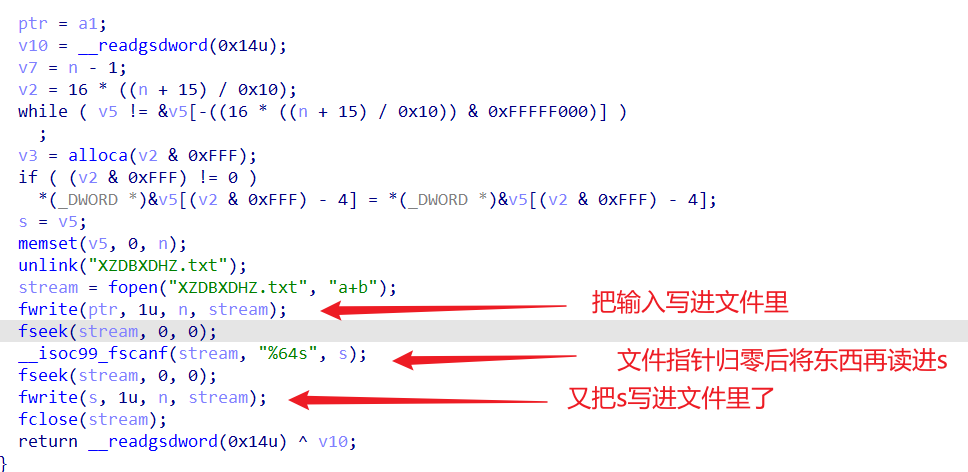

没啥好说的，反复横跳没看出来这个函数有啥用，直接写

import angr
import claripy
import sys

def main(argv):
    path = argv[1]
    p = angr.Project(path,auto_load_libs = False)
    start_address = 0x080495B6
    init_state = p.factory.blank_state(addr = start_address)

    password = claripy.BVS('password',64)
    init_state.memory.store(0x804C0A0,password)

    sm = p.factory.simgr(init_state)

    def is_sucessful(state):
        stdout_output = state.posix.dumps(1)
        return True if  b'Good Job.' in stdout_output else False

    def should_abort(state):
        stdout_output = state.posix.dumps(1)
        return True if b'Try again.' in stdout_output else False

    sm.explore(find = is_sucessful,avoid = should_abort)

    if sm.found:
        solution_state = sm.found[0]
        solution = solution_state.solver.eval(password,cast_to = bytes).decode()
        print(solution)
    else:
        print('Not Found')

if __name__ == '__main__':
    main(sys.argv)

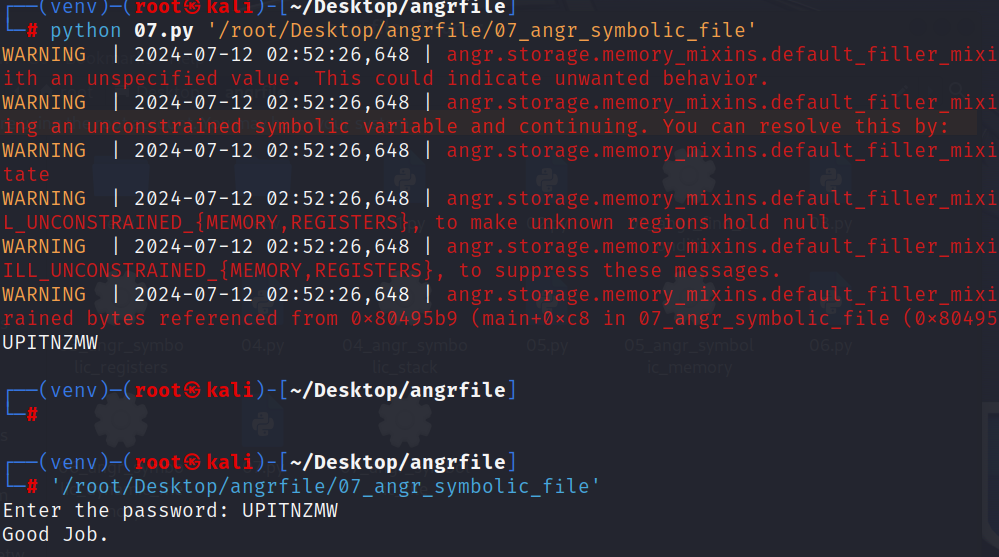

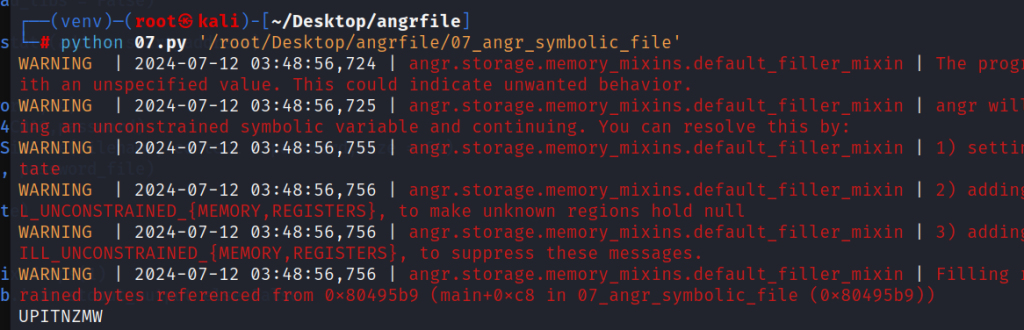

我直接创建在读文件之后的state，并没用到文件有关的东西，而出题人的思路是将load的文件进行替换，将函数中的文件换成我们自己写的一个”xxx.txt”，在我们的txt中写一个变量，然后我们就可以利用angr进行解题

import angr
import claripy
import sys

def main(argv):
    path = argv[1]
    p = angr.Project(path,auto_load_libs = False)
    start_address = 0x08049550
    init_state = p.factory.blank_state(addr = start_address)

    filename = 'XZDBXDHZ.txt'
    password = claripy.BVS('password',64)
    #init_state.memory.store(0x804C0A0,password)
    #创建的新文件包括(文件名,内容，文件大小) PS:不要忘记文件大小
    password_file = angr.storage.SimFile(filename, content = password,size = 64)
    init_state.fs.insert(filename, password_file)

    sm = p.factory.simgr(init_state)

    def is_sucessful(state):
        stdout_output = state.posix.dumps(1)
        return True if  b'Good Job.' in stdout_output else False

    def should_abort(state):
        stdout_output = state.posix.dumps(1)
        return True if b'Try again.' in stdout_output else False

    sm.explore(find = is_sucessful,avoid = should_abort)

    if sm.found:
        solution_state = sm.found[0]
        solution = solution_state.solver.eval(password,cast_to = bytes).decode()
        print(solution)
    else:
        print('Not Found')

if __name__ == '__main__':
    main(sys.argv)

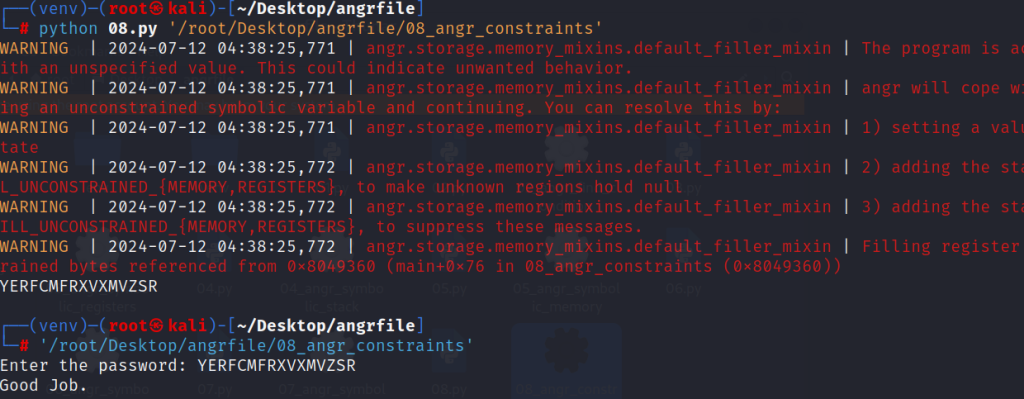

0x1.08_angr_constraints

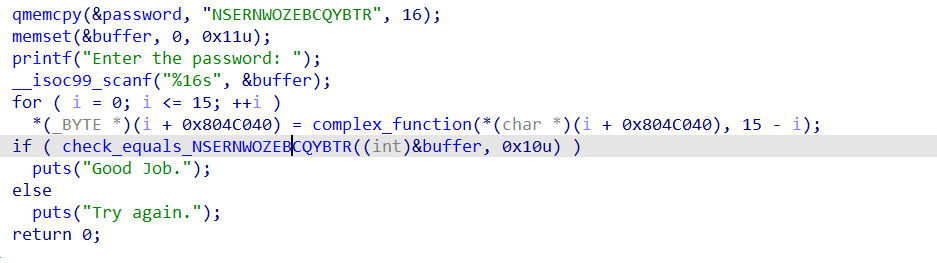

解法不唯一啊，感觉可以直接一把梭，但是写出代码来会发现这个脚本效率太低了跑不出来，感觉是检查的那个函数太啰嗦了，如果可以提前终止main的流程并且将password与给定的字符串进行比较就好了

出题人也是这样设计的，简单了解下这个脚本中用到的函数，给出exp

import angr
import claripy
import sys

def main(argv):
    path = argv[1]
    p = angr.Project(path,auto_load_libs = False)
    start_address = 0x08049360
    init_state = p.factory.blank_state(addr = start_address)

    init_state.memory.store(0x0804C030,b"NSERNWOZEBCQYBTR")
    password = claripy.BVS('password', 16*8)
    init_state.memory.store(0x0804C040,password)

    sm = p.factory.simgr(init_state)
                          #当遇到检测函数的时候就停下来
    sm.explore(find = 0x080493AE)

    if sm.found:
        solution_state = sm.found[0]
                          #将该state的某个值提取出来(目标地址，目标大小字节)
        password_encode = solution_state.memory.load(0x0804C040,0x10)
                          #增加限制条件
        solution_state.add_constraints(password_encode == b"NSERNWOZEBCQYBTR")
        solution = solution_state.solver.eval(password,cast_to = bytes).decode()
        print(solution)
    else:
        print('Not Found')

if __name__ == '__main__':
    main(sys.argv)

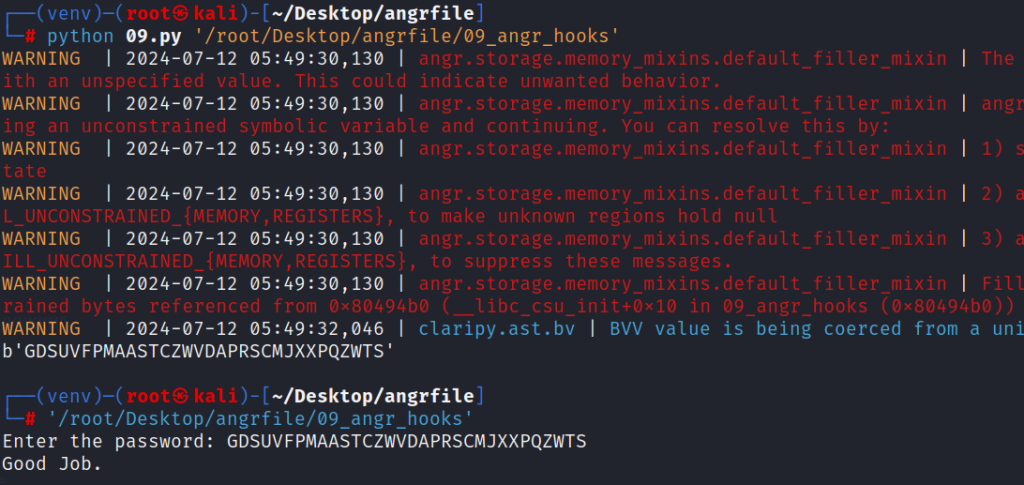

0x2.09_angr_hooks

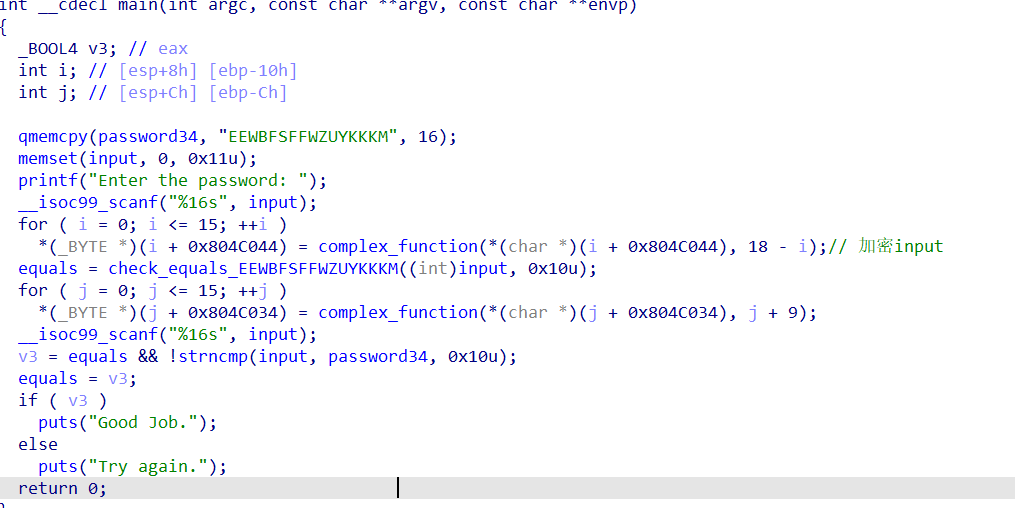

这个题是把input拆成了两部分，分别加密并无直接的联系，所以可以写两个angr脚本分别求出来然后拼起来就是答案

题目给了提示hook，简单看了一下没有hook函数，然后就感觉大事不妙(不是哥们，我只会逆不会写这玩意啊)，直接学习出题人的脚本

import angr
import claripy
import sys

def main(argv):
    path = argv[1]
    p = angr.Project(path,auto_load_libs = False)
    init_state = p.factory.entry_state()
      #(调用函数地址，跳过的函数长度)
    @p.hook(0x080493CE, length = 0x8)
    def skip_check_equals_(state):
        input_string = state.memory.load(0x0804C044,0x10)
        #claripy.If(expression, ret_if_true, ret_if_false)
        #在gcc中函数调用的返回值被存在aex中
        state.regs.eax = claripy.If(input_string == "EEWBFSFFWZUYKKKM"
        ,claripy.BVV(1,32),claripy.BVV(0,32))

    sm = p.factory.simgr(init_state)

    def is_sucessful(state):
        stdout_output = state.posix.dumps(1)
        return True if  b'Good Job.' in stdout_output else False

    def should_abort(state):
        stdout_output = state.posix.dumps(1)
        return True if b'Try again.' in stdout_output else False

    sm.explore(find = is_sucessful,avoid = should_abort)

    if sm.found:
        solution_state = sm.found[0]
        solution = solution_state.posix.dumps(0)
        print(solution)
    else:
        print('Not Found')

if __name__ == '__main__':
    main(sys.argv)

今天的题就做到这吧 : )

挖个坑，后续会在每个文章的结尾总结一下本文get到的新知识，希望不会鸽 : (
